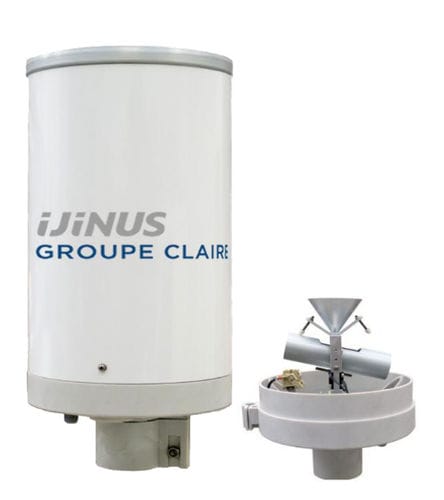

GPRS rain gauge RG20

400 cm²

Tipping bucket rain gauge Resolution of 0,2 mm Data logger communication to choose from radio/2G/4G (NB-IoT, LTE-M) Web monitoring platform and mobile App available Easy to install and set up Data retrieval on site by radio (RFID) Timestamp or accumulated precipitation operation, temperature Export data to Csv, Excel or HTML Several supports options are available The RG20 rain gauge is connected to one of our portable and compact data logger LOG V4 which allows local data retrieval by radio communication, or it automatically sends them by GPRS / FTP / FTPS to your compatible SCADA software such as Areal Topkapi, Lerne, Dev I/O, Floee, or our web monitoring platform Ijitrack.com. The sensor is made up of a funnel collector and a couple of calibrated collecting containers (tipping buckets). The calibrated collector area and the geometry of the collector prevents the rain from splashing in and out, according to WMO recommendations (World Meteorological Organization). Every time a bucket is filled, the instrument outputs an electrical signal that can be sent to an automatic data acquisition system. If precipitation is in a solid form, snow or hail, the instrument can measure the amount of water obtained from their melting.
