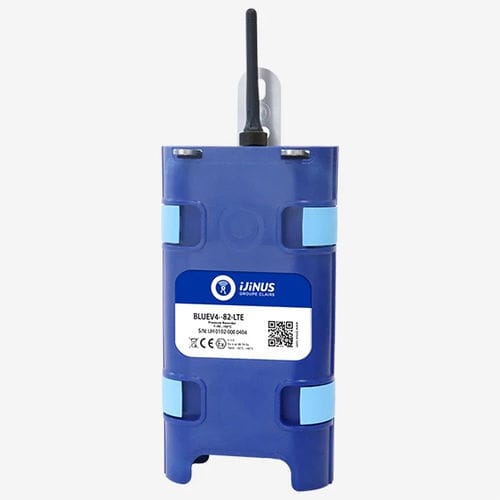

Flow data-logger BLUE

pulseModbusRS-485

- Drinking water network diagnostic loggers - Battery powered, 500 000 data memory - 2x digital contact inputs or counter 100 Hz max (Ready for 4 digital inputs), - 1x RS485 Modbus, - 2x 4-20mA inputs - 1x open collector output, 1x Modbus RS485 - Wireless configuration and data collection via radio. Available templates in Avelour software - 2G/4G (LTE-M / NB-IoT) communication option to Ijitrack.com or your server (secure protocol or .CSV) - IP68 housing : 2m / 100 days - Excel report This compact battery powered data logger allows you many water network applications (pulse count, Modbus flow meter, 4-20mA, external pressure sensor, …) The BLUE range of data loggers for optimised management of drinking water network surveys, sectorisation. - Flow logging : Connection to electromagnetic flowmeters via Modbus (Krohne, ABB, Siemens, …). - Recording of volumes by pulse counting (100Hz max) : Use of a Cyble / pulse unit to be connected to the drinking water meter. Remote reading of water meters - Default / door opening logging, connected to a digital input. - Control and command of a control valve via digital output. Quick radio configuration of the equipment The logger can be configured on site by radio using a radio kit (radio transmitters and receivers to be connected via USB to a computer). The connection is direct, without the need to activate the device. This kit includes Avelour 7 software, which provides assisted application configuration models at each stage (measurement frequency, thresholds, conversions, data communication options and tests, …). Several applications can be configured for one logger.
