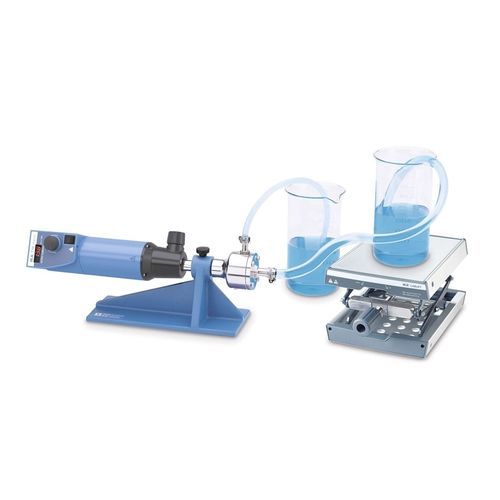

Rotor-stator disperser UTL 25 digital Inline ULTRA-TURRAX®

in-linelaboratoryfluid

For circulation or flow-through processing in the laboratory. • Simple, compact and sturdy modular design • Sterilizable, autoclave-compatible • Table-top or stand-supported device, low space requirement • Easy disassembly • Large delivery capacity of 4.4 to 11.6 l/min with open outlet (the mounting of a valve can reduce the flow rate) • For air-free, sterile, and inline suspension, emulsifying and deagglomeration • For vacuum or pressurized operation (up to 6 bar) • If the DK 25.11 is used, air induction is also prevented in batch operation • Not self-priming • A pump can be integrated between intake nozzle and vessel. As a result, viscous fluids can be processed • Not suitable for continuous operation or cyclical continuous operation • The hoses used should have an inner diameter size of 13 mm (inlet) and 9 mm (outlet) respectively to fit the DK 25.11 flow chamber Scope of delivery • T 25 digital ULTRA-TURRAX® • DK 25.11 flow chamber • AD 25 mounting support • S 25 KV - 25 G-IL dispersing tool
