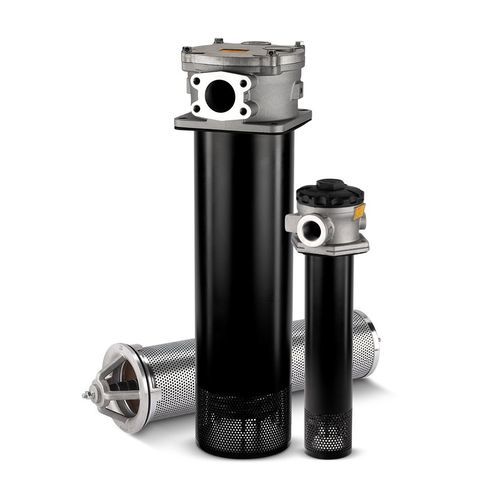

Return-line filter HF570/575/578 serieshydrauliccartridgepressure
Add to favorites
Compare this product
Characteristics
- Designed for
- hydraulic
- Filtration element
- cartridge
- Filtration method
- pressure
- Applications
- for collection tanks
- Material
- stainless steel
- Norms
- G3, G2, G1
- Other characteristics
- return-line, top-mounted
- Operating pressure
8 bar
(116.03 psi)- Filtration size
Max.: 125 µm
Min.: 10 µm
- Flow
Max.: 1,200 l/min
(317.006 us gal/min)Min.: 510 l/min
(134.728 us gal/min)
Description
Tank top return line filters with special in to out filtration flow.
Ikron HF570/575/578 return filters are mounted in the return line of the circuit and protect the system components from contaminant particles.
They provide an in to out filtration flow. The internal magnetic set ensures the fluid metal contaminant particles capture. They are usually combined with fluid speed-decelerating diffusers.
