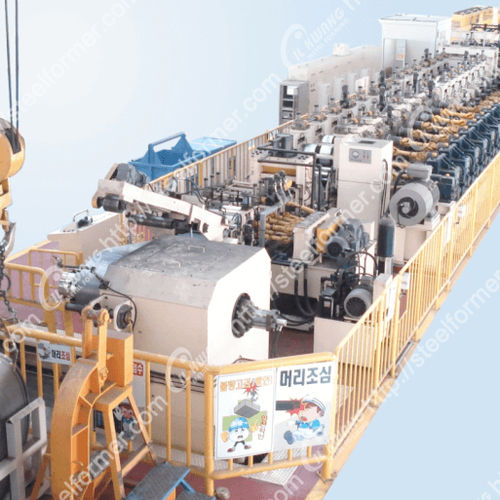

Profile roll forming machine
automaticpunchingprecision

profile roll forming machine
profile roll forming machine
profile roll forming machine
profile roll forming machine
profile roll forming machine
profile roll forming machine
profile roll forming machine
Add to favorites
Compare this product


Characteristics

Finished product
for profiles
Control type
automatic
Other characteristics
punching, precision
Sheet thickness

Min.: 5 mm
(0.2 in)

Max.: 10 mm
(0.4 in)

Sheet width

Min.: 340 mm
(13 in)

Max.: 560 mm
(22 in)

Description

The equipment is manufactured based on the world’s top technology and experiences, and Roll forming machine for Side member is equipped with high durability and convenient management. It forms U Bar and G. V. Side Member of 6 ~ 12mm thickness for commercial vehicles and the following equipment has been installed for Hyundai Motor Company in Korea, China and Asia Motor Group (AMW) abroad Recently, the molding method is applied and recognized as the most suitable for auto parts production facility after covering the pressing type. Our Roll forming machine for Side member is based on 25 years of continuous technical development to produce the production of precision assembly of automotive products in accordance. The thickness and width of the material senses are committed to the production and automatically changes to the production of complete sets of equipment for all products. The forming rollers have been designed based on the structure calculation program for considering the sufficient rigidity of side members. Developed so that they can be processed at the same time forming part of the secondary processing such as punching, bending characteristic even after molding of auto parts Roll forming machine for Side member consists of Un-coiler that inputs and releases coil, Pinch Roll & Leveling System that exquisitely inputs coil, Roll Forming Unit that makes shapes through Multi-stage Roll Forming Unit, and Shearing Unit that cuts the fabricated products. 1. - Raw material - : - IRSM44 (BSK 46, Domex 550-600, hot rolled alloy steel) in coil Y.P is from 450 ~ 650Mpa T.S is from 500 ~ 800Mpa
