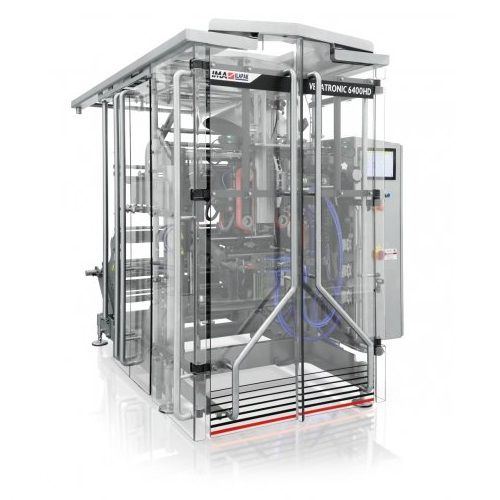

Vertical bagging machine VEGATRONIC 6400

VFFSPLC-controlledfor the food industry

The Vegatronic 6400 is an evolution of ILAPAK’s top performing Vegatronic 6000 bagger, which has been developed and adapted to meet the specific demands of meat industry in terms of sanitary design, accessibility, fast changeover and OEE (overall equipment effectiveness). Open frame design, IP66 rated electrical components, easy removable forming tube and a cantilever film reel shaft are among the features that combine to make the Vegatronic 6400 the most efficient and hygienic meat industry bagger on the market today. Sanitary design has been achieved by keeping aluminium components to a minimum (moving parts only) and using high quality stainless steel for the majority of parts. The film reel carriage, film rollers and bearings, for example, are all full stainless steel construction. Thoughtful engineering has resulted in a machine that has minimal flat surfaces and recesses where dust and debris can accumulate. All parts on the main frame of the bagger are made from rounded components, the splicing table and forming tube support are inclined, the top of the electrical cabinet is sloped and the protective plate above the bagger is apex shaped. The Vegatronic 6400 is also a full washdown bagger; all electronic and electrical parts are sealed to IP66 or higher and open frame architecture allows ready access for cleaning. The open frame design also maximises uptime, as engineers and operators have full accessibility to the front and side of the machine, which makes for easy maintenance. Efficiency on the Vegatronic 6400 has been enhanced in a number of ways.
