Gear pump MPT-500
oilelectricself-priming

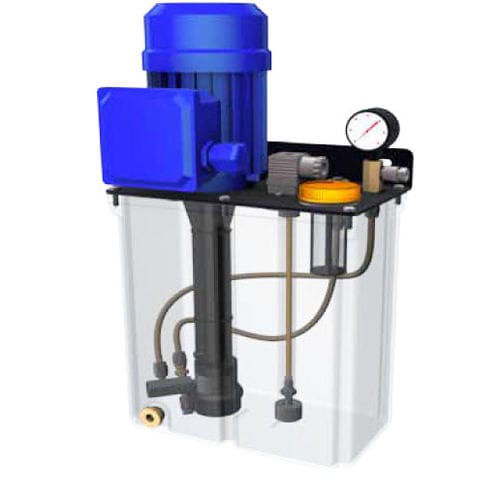

Gear pump - MPT-500 - I.L.C. srl - oil / electric / self-priming
Gear pump - MPT-500 - I.L.C. srl - oil / electric / self-priming
Gear pump - MPT-500 - I.L.C. srl - oil / electric / self-priming - image - 2
Gear pump - MPT-500 - I.L.C. srl - oil / electric / self-priming - image - 3
Add to favorites
Compare this product


Characteristics

Technology
gear
Fluid
oil
Operation
electric
Priming
self-priming
Domain
industrial
Applications
for centralized lubrication systems, discharge, service
Pressure

Max.: 50 bar
(725.189 psi)

Min.: 15 bar
(217.557 psi)

Power

50 W
(0.07 hp)

Description

DISCHARGE/MINUTE 100 CC WORKING PRESSURE 5 - 25 bar (70-354 PSI) ADJUSTABLE 15–50 bar (212-708 PSI) ADJUSTABLE RELEASE VALVE 0.7 bar RESERVOIR 3 L – 5 L - 6 L SUCTION STRAINER 250 MICRON PRESSURE GAUGE 0 - 60 bar / 0 - 870 PSI DISCHARGE PORT M12X1 TUBE 6mm TEMPERATURE RANGE FROM -20°C TO +80°C LUBRICANTS OIL 50 - 1000 cSt 40°C LOW LEVEL SWITCH 1.5 A 250 V AC 200 V DC 50 W MOTOR SEE TABLE AT PAGE 20
