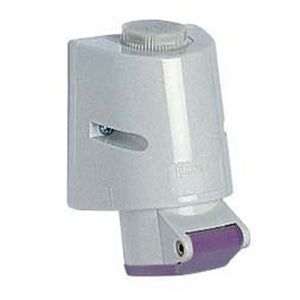

Wall-mounted electrical socket PB 16002 PP

built-inself-extinguishingIP44

Brief description: surface mounting housings, sockets, 2 poles, 16 (A.C.), 20 ÷ 25V, no key way purple, IP44 - Compliant with EN 60309-1 and -2 - Enclosure, insert and spring lid in insulating, thermoplastic, self-extinguishing material - RAL 7035 grey enclosure - Spring lid colour coded according to the operating voltage and frequency - Wall-mounting types PB...PP, top entry with threaded grommet (replaceable with cable gland) - Flush-mounting types PB...PI, flange with anti-aging gasket - Coupler types PB...PV, cable anchoring collar incorporated in the insert, entry with grommet - Terminals with retained screws - Nickel-plated contacts on request - IP44 degree of protection (EN 60529) TECHNICAL DETAILS Product description ModelSockets VersionExtra-low voltage, up to 50V SeriesPB...PP Product typeWall-mounting FamilyPlugs and socket-outlets N. of poles2 poles Clock positionNo key way Technical data Current16 A Voltage20 ÷ 25 V Frequency50 and 60 Hz. Operating temperature range (min, max)-40°C … +125°C MaterialThermoplastic IP degree of protectionIP44 Further technical details Weight168,00 g Approvals / Standards Reference standardEN 60309-1 and -2 ConformityNot applicable General ordering information EAN13 code8015747060653
