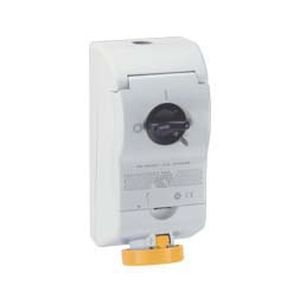

Built-in electrical socket KI 1643 EB6

wall-mountedself-extinguishingIP66

Brief description: interlocked switched socket-outlets, sockets, 2 poles + PE, 16 (A.C.), 100 ÷ 130V, 4 yellow, IP66 (EN 60529) - Compliant with EN 60309-1, 2 e 4 - Enclosures and inserts in insulating self-extinguishing thermoplastic material, RAL 7035 grey - 16A and 32A types with spring lid - Factory installed internal wiring - Cable entry with threaded metric opening - "ZG" series switch, with 32A rating - Mechanical interlock that prevents: the switch from being turned on without the plug inserted and the plug from being removed while the switch is on - Lockable switch - Inspection panel, openable only when the switch is off. TECHNICAL DETAILS Product description ModelSockets VersionIB6/EB6 interlocked switched socket-outlets, IP66, wall-mounting SeriesKI ... EB6 Product typeInterlocked switched socket-outlets FamilyInterlocked socket-outlets Size114x228 fixing plates FC xx41 TB N. of poles2 poles + Clock position4 Technical data Current16 A Voltage100 ÷ 130 V Frequency50 and 60 Hz. Operating temperature range (min, max)-40°C … +125°C MaterialThermoplastic IP degree of protectionIP66 Further technical details Weight1.066,67 g Approvals / Standards Reference standardEN 60309-1 and -2 Quality mark, EAC General ordering information EAN13 code8015747060554
