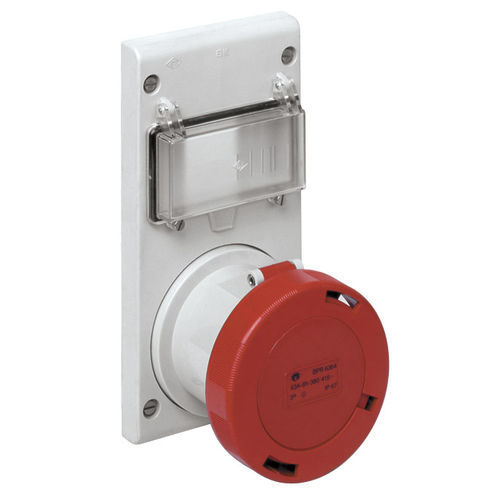

Built-in electrical socket BPR 63114panel-mountedIP67IP66
Add to favorites
Compare this product
Characteristics
- Mounting
- built-in, panel-mounted
- Protection level
- IP67, IP66
- Number of poles
- 3-pole
- Other characteristics
- industrial, lockable
- Current
63 A
- VAC
Min.: 440 V
Max.: 460 V
Description
TECHNICAL DETAILS
Product description
ModelSockets
VersionBK interlocked switched socket-outlets for industrial purposes IP66/IP67, for distribution boards
SeriesBP..
Product typeCover with socket-outlets
VariantAnd compartment for modular units
FamilyCover with socket-outlet
N. of poles3 poles +
Clock position11
Technical data
Current63 A
Voltage440 ÷ 460 V
Frequency60 Hz.
Operating temperature range (min, max)-40°C … +125°C
MaterialThermoplastic
IP degree of protectionIP67
Approvals / Standards
Reference standardEN 60309-1 and -2
Quality mark, EAC
General ordering information
EAN13 code8015747147255
