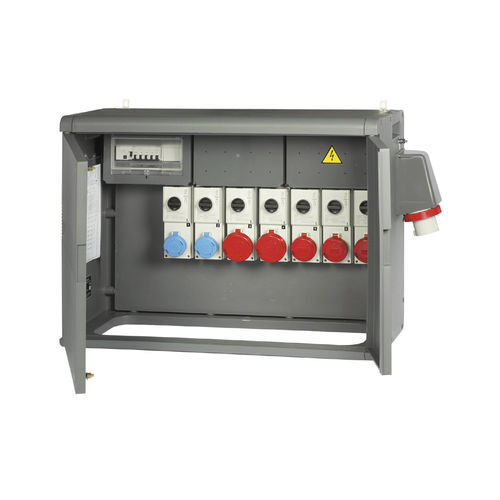

Electric cabinet with post QG SQ Awall-mounted
Add to favorites
Compare this product
Characteristics
- Mounting
- with post, wall-mounted
- Width
1,200 mm
(47.2 in)- Height
105 mm
(4.1 in)- Depth
430 mm
(17 in)
Description
variants:
- 63A magnothermal differential switch
- two SQV 3264.5 (380V, 32A, 3P+ , 6h) socket-outlets
- three SQV 1664.5 (380V, 16A, 3P+ , 6h) socket-outlets
- two SQV 1663.5 (220V, 16A, 2P+ , 6h) socket-outlets
- one PEW 6365 SM-S (380V, 63A, 3P+N+ , 6h) plug
- 35kW maximum active power foreseeable
TECHNICAL DETAILS
Product description
SeriesQG site boards with SQV series interblocked sockets
Product typeAssembled board composed of: QG V base board, SQV interblocked sockets with wall mounting case (SQC 923 CS), general emergency button, main switch undervoltage release coil
FamilyQ factory-assembled construction site boards (ACS)
Technical data
Operating temperature range (min, max)-40°C … +125°C
No. of sockets7
Further technical details
Weight10,00 g
Approvals / Standards
Reference standardEN 60439-4
Quality mark, EAC
General ordering information
EAN13 code8015747121279
Catalogs
QM - QC
44 Pages
