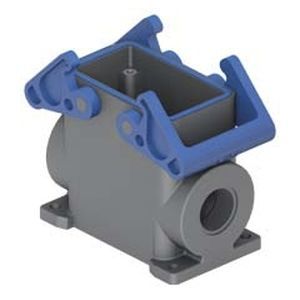

Electric connector housing TAPH 10.225IP66plastichygienic
Add to favorites
Compare this product
Characteristics
- Type
- electric
- Protection level
- IP66
- Other characteristics
- plastic, hygienic
Description
Brief description: surface mounting housings with 2 levers, size "57.27", M25, HYGENIC enclosures T-TYPE /H version, IP66 and IP69
TECHNICAL DETAILS
Product description
VersionHYGENIC enclosures T-TYPE /H version
SeriesSurface mounting housings with 2 levers
Product typeWith two levers in thermoplastic material
FamilyT-TYPE insulating enclosures
SizeSize "57.27"
Technical data
Operating temperature range (min, max)-40°C … +70°C
MaterialThermoplastic
IP degree of protectionIP66/IP69
Cable entryM25
Further technical details
Weight174,00 g
Approvals / Standards
Quality mark (type:12), EAC
ConformityCQC, CE
General ordering information
EAN13 code8015747209922
Tariff number85369095
