D-sub connector CX 01 9VTFdataPCBRS-485
Add to favorites
Compare this product
Characteristics
- Type
- data
- Format
- D-sub, PCB, RS-485
- Shape
- rectangular
- Connection type
- female
- Electrical characteristics
- multipole, shielded
- Product applications
- for cables
- Domain
- automation
- Protection class
- IP68, IP65, IP66
- Other characteristics
- modular, custom
- Primary current
5 A
- Voltage
50 V
Description

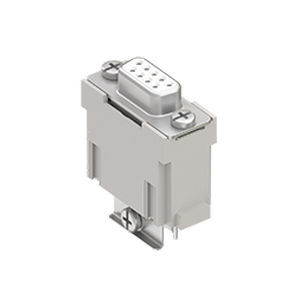

D-Sub module: reliable shield connection
The new enhanced female D-Sub shielded module is the perfect solution for a wide range of sectors, including automation, robotics and energy, as it offers a T-connection for RS-485 BUS systems, making it also suitable for Motor-Control-Center technology (MCC).
The new version of the 9-pole module (CX 01 9VTF) is equipped with a printed circuit with 2×2 screw terminals for the cable connection and grants a complete wire shielding.
Together with the relevant already existing male connector (CX 01 9VM), it enriches the ILME MIXO series of modular inserts.
