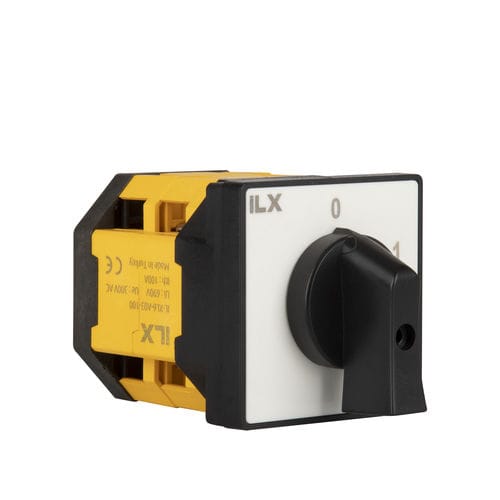

On/off switch il-XP4-A01-010rotarycamsingle-pole
Add to favorites
Compare this product
Characteristics
- Type
- rotary, cam
- Number of poles
- single-pole, multipole
- Protection level
- insulated, robust, vibration-resistant, thermoplastic molded, heat-resistant, flame-retardant
- Mounting
- panel mount
- Other characteristics
- thermoplastic, panel-mount, on/off, industrial, mechanical, box, metal, latching action, high-accuracy, with silver contacts, double, interlock, DIN rail, bypass
- Primary current
Min.: 10 A
Max.: 125 A
- Voltage
690 V
- Diameter / length
48 mm, 64 mm, 88 mm
(1.9 in, 2.5 in, 3.5 in)- Operating temperature
Min.: -20 °C
(-4 °F)Max.: 40 °C
(104 °F)
Description
Ampermeter Commutators Cam Switch Quadruple Phased G Type 48x48
-Mechanical Cell Locks
-Column bolt
-Long Nut
-Insulation of Bridge
-Copper Bridge
-Silver Contact
-Non-deforming mounting feature with M4 nuts
-High clamping strength with M4 bolts
-Ability to be mounted on thick surfaces
-Laser Marking
-Lift mounting bolts
-Closed Bolt System
-Metal Shaft
*All Cam Switches have a boxed model option.
*The Prices of P, L, and LG Type are all the same.
*Please contact us for special cam switch requests.
Body Diameter & Current:
48x48 mm→10-16-20-25 (A)
Mounting Options:
-Panel Mount
-Locked Mount
-ByPass
Pole / Stage : 4 Pose
