Magnetic tube separator IMA TM

particle

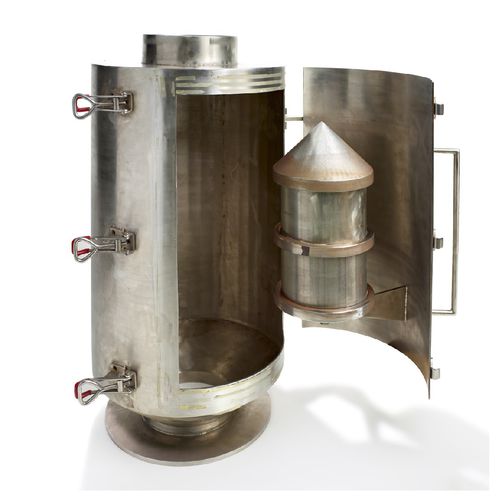

To make the cleaning of the waste ferrous particles easier, the product flow must be temporarily stopped or temporarily diverted from the magnetic tube. When the door is opened, the tube, which is attached to the door, is made easily available for cleaning purposes and thus avoids the possibility of the particles falling back into the product channel. Format: Entry and exit fixings according to specifications / please indicate in the order. Better access thanks to the double effect hinge swinging door. In bigger tubes, sliding doors are introduced in order to make the cleaning process easier. Maximum working temperature: Working temperature is 80ºC. and on request we can supply to withstand higher temperatures. Remarks: High intensity magnetic flux fields are emitted from concentrators of the tube and they generate in excess of Gauss 5000 / 9000. High proteccion against a great variety of contaminating products. No maintenance (just cleaning), no electricity, no extra expenses. Fast and easy to set up. Once it is placed in position, its functioning is guaranteed. Enclosed quality certificate. Magnetic performance guaranteed.
