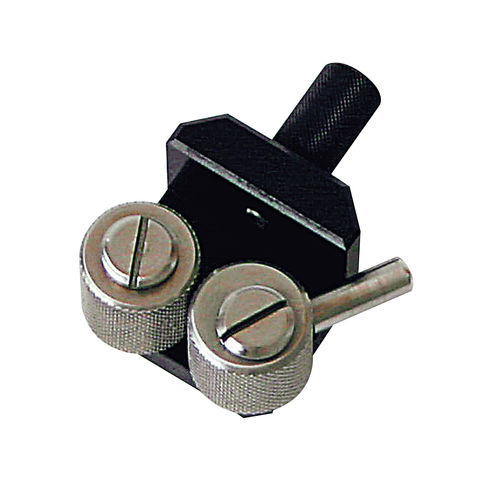

Test grip Knurled Cam Grip GP-15/30

tensionforce gaugeroller

GP-15/30 is knurled cam grip with 1000N capacity, ideal for tension testing of soft and extensible samples such as wire and plastic. Combine it with a force gauge and a test stand to complete a tension testing system. Features - It reduces breakage of sample due to cam mechanism. - It is ideal for tension testing of soft and extensible samples. - It is designed to set a sample easily to improve measurement efficiency. - 2 models available; for force gauge (GP-15) and for test stand (GP-30) Measurement Examples Wire, Plastic, Elastomer, Rubber, Cable, Silicon, Tube etc Specifications GP-15 (Mounting to the force gauge) Capacity: 250N Opening width: Max.4.5mm Width grip portion: Max.15mm GP-30 (Mounting to the test stand) Capacity: 1000N Opening width: Max.10mm Width grip portion: Max.30mm *Contact us for details of models of test stand. Related Products - Roller Grip GC-60/100 This roller grip ideal for measurement of extensible sample such as rubber, film, tape, etc. - Cam Grips GR-30/2000 This cam grips ideal for tension testing of thin rectangular-shaped sample such as paper and rubber sheet. We offer almost 100 of ready-made attachments to fit a wide range of force testing applications such as tension/ compression/ peel/ COF test. See our website for further information. With our know-how accumulated over 70 years, we are confident in offering the best force measurement solution for your needs. Please contact us for any inquiries.
