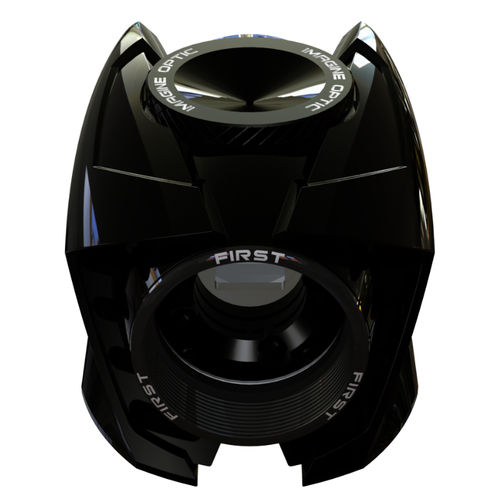

Wavefront sensor HASO4 FIRST

HASO4 FIRST Wavefront Sensor Providing outstanding performance, the HASO Wavefront Sensor family is used in the most demanding applications in optical metrology, microscopy and laser diagnostics worldwide. We offer a unique combination of expertise in high quality microlens production, software development and accurate factory calibrations.The HASO4 FIRST Wavefront Sensor is compatible with our Optical Engineer Companion.* BEST FOR – Adaptive Optics applications for microscopy or UHIL – OEM applicaitons in optical metrology and beam diagnostics – AO for high-power laser optimization Applications Quantify optical system’s aberrations Align system for optimal performance Predict system’s focalization and imaging quality Measure effects of temperature and gravity on performance Verify compliance with specifications Pilot wavefront corrector to change aberrations Check if optical mount distorts optics. Features Beam collimation with accuracy of better than 200m radius of curvature 20mm focal length measurement with sensitivity of 1μm rms Direct wavefront acquisition of F/5 beams with λ/100 accuracy, including astigmatism and high-order aberrations Control and adjustment of axial laser beam deviation better than 5 μrad rms 3D localization of focal spot with 0.1μm rms for lateral and 1μm rms for axial resolution (0.1 NA beam).
