Bearing wheel type roller GRL-P-R-SUSguideconveyingdrive
Add to favorites
Compare this product
Characteristics
- Type
- bearing, guide, conveying, drive
- Material
- stainless steel, plastic, polyacétal
- Applications
- for sliding doors
- Other characteristics
- with ball bearing, low-noise, U-form
- Outer diameter
Max.: 30 mm
(1.181 in)Min.: 21 mm
(0.827 in)- Inside diameter
Max.: 8 mm
(0.31 in)Min.: 6 mm
(0.24 in)6 mm
(0.24 in)- Width
Max.: 9 mm
(0.35 in)Min.: 6 mm
(0.24 in)- Load capacity
Max.: 196 N
Min.: 98 N
Description

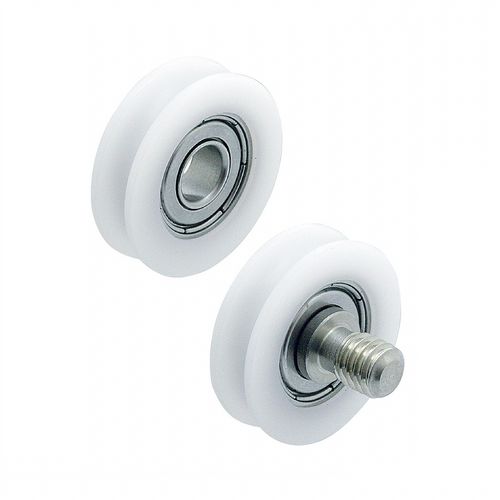

U GROOVE PLASTIC GUIDE ROLLERS
Without/With Stud type are available.
-Feature-
The plastic body provides silent running.
-Notes-
-Roller pin for the “Without Stud” type should be
prepared by the customer.
-Do not use in applications where impact load or
axial load is applied.
-“Allowable Load” mentioned below means
allowable radial load based on the test of
rotating the roller a million times at the speed
of 300min−1. Consider the above load values as
a reference since load capacity varies with use
conditions or environments.
-Technical Information-
Allowable Load: 98N, 196N
Heat-resistant Temperature: 105 degrees celcius
-Materials-
Body: Polyacetal plastic, White
Bearing: SUS440C stainless steel
Stud: SUS303 stainless steel
-Datasheet-
https://www.imao.co.jp/files/on-cat/pdf/en/grl-p-r-sus-e.pdf
