Bearing wheel type roller CTG-BR
guideconveyingdrive

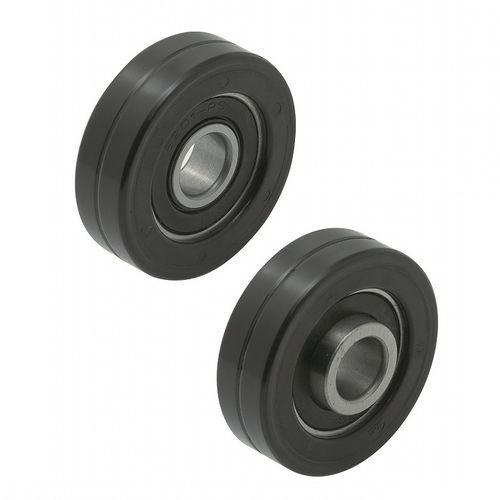

Bearing wheel type roller - CTG-BR - Imao Corporation - guide / conveying / drive
Bearing wheel type roller - CTG-BR - Imao Corporation - guide / conveying / drive
Add to favorites
Compare this product

Go to the Imao Corporation website for more information

Characteristics

Type
bearing, guide, conveying, drive, tensioner
Material
steel, polyurethane
Applications
for sliding doors
Other characteristics
with ball bearing, low-noise
Outer diameter

Max.: 60 mm
(2.362 in)

Min.: 20 mm
(0.787 in)

Inside diameter

Max.: 15 mm
(0.59 in)

Min.: 6 mm
(0.24 in)

Width

Max.: 15 mm
(0.59 in)

Min.: 8 mm
(0.31 in)

Load capacity

Max.: 539 N

Min.: 55 N

Description

GUIDE ROLLERS (Light-Duty) Non-Collar type and Double-Collar type are available. -Features- -Use as rollers for sliding doors or carriers. -Light-duty. -The urethane part and the special bearing are integrally molded for the prevention of separation. (The urethane part is single-layered for Guide Rollers with O.D. of 20 to 35mm, and double-layered for those with O.D. of 40 to 60mm.) -The urethane body provides silent running. -Materials- Body: Polyurethane, Shore hardness A95, Dark brown Bearing: Steel Double rubber-sealed -Datasheet- https://www.imao.co.jp/files/on-cat/pdf/en/ctg-br-e.pdf
