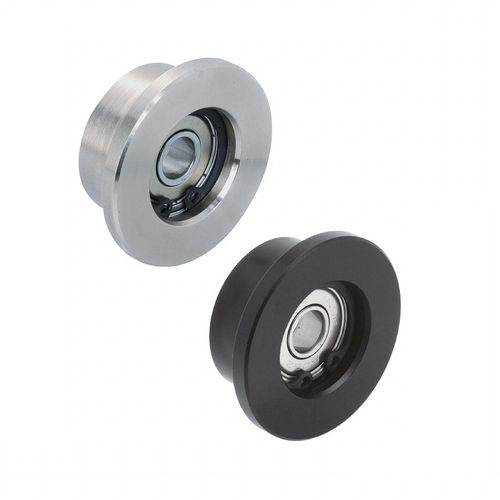

Bearing wheel type roller GRL-L
guideconveyingtensioner

Bearing wheel type roller - GRL-L - Imao Corporation - guide / conveying / tensioner
Bearing wheel type roller - GRL-L - Imao Corporation - guide / conveying / tensioner
Add to favorites
Compare this product

Go to the Imao Corporation website for more information

Characteristics

Type
bearing, guide, conveying, tensioner, drive
Material
steel, polyacétal
Applications
for sliding doors
Other characteristics
with ball bearing, flanged, heavy-duty
Outer diameter

Max.: 70 mm
(2.756 in)

Min.: 30 mm
(1.181 in)

Inside diameter

Max.: 15 mm
(0.59 in)

Min.: 6 mm
(0.24 in)

Width

Max.: 28 mm
(1.1 in)

Min.: 12 mm
(0.47 in)

Load capacity

Max.: 7,650 N

Min.: 840 N

Description

SINGLE-FLANGED GUIDE ROLLERS Steel type and Plastic type are available. -Features- -Use as rollers for sliding doors or carriers. -Medium-duty -This product can accept a polished steel bar that is available commercially. -Materials- Body: S45C steel, Electroless nickel plated Polyacetal plastic, Black Bearing/Retaining Ring: Steel -Datasheet- https://www.imao.co.jp/files/on-cat/pdf/en/grl-l-e.pdf
