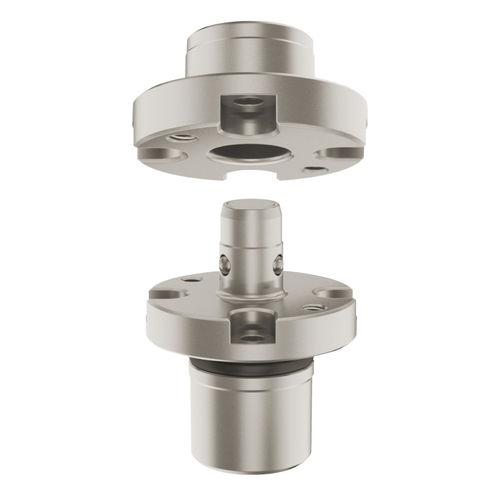

Standard zero-point clamping system AMWF-L-S
flangehorizontalquick

standard zero-point clamping system
standard zero-point clamping system
standard zero-point clamping system
Add to favorites
Compare this product


Characteristics

Mounting
standard, flange, horizontal
Other characteristics
quick, pneumatic, compact
Configuration
round

Description

PNEUMATIC FLEX LOCATOR IMAO's pneumatic fasteners provide quick change solution for frequent changeover of automation machinery. Quick clamping and locating with 0.02mm repeatability eliminates set up time in frequent changeover of plates, tooling and fixtures. These automated fasteners are quick, simple and secure changeover solution to increase your productivity. -Feature- Very Fast Clamping -Positioning & clamping in a single operation -Increases machine running time Perfect Repeat Accuracy +/- 0.01mm by cylindrical surface locating -Secure clamping by ball lock -Technical Information- Clamping Force(N): 250N, 350kN Operating Air Pressure(MPa): 0.5MPa -Materials- Body: S45C steel, Electroless nickel plated Ball: SUS440C stainless steel Coiled Spring: SUS304WPB stainless steel -Datasheet- https://www.imao.co.jp/files/on-cat/pdf/en/amwf-l-s-e.pdf
