Bearing wheel type roller GRL-V
guideconveyingdrive

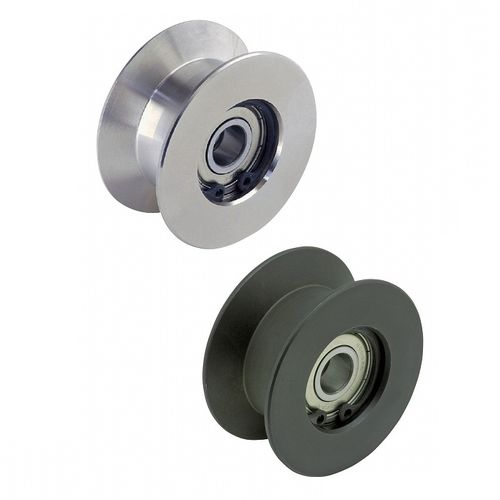

Bearing wheel type roller - GRL-V - Imao Corporation - guide / conveying / drive
Bearing wheel type roller - GRL-V - Imao Corporation - guide / conveying / drive
Add to favorites
Compare this product

Go to the Imao Corporation website for more information

Characteristics

Type
bearing, guide, conveying, drive
Material
steel
Applications
for sliding doors
Other characteristics
flanged, for heavy loads, rigid, V-form, heavy-duty
Outer diameter

Max.: 70 mm
(2.756 in)

Min.: 30 mm
(1.181 in)

Inside diameter

Max.: 15 mm
(0.59 in)

Min.: 6 mm
(0.24 in)

Width

Max.: 39 mm
(1.54 in)

Min.: 18 mm
(0.71 in)

Load capacity

Max.: 12,390 N

Min.: 1,360 N

Description

V GROOVE GUIDE ROLLERS (DOUBLE BEARINGS) Steel type, Hardened Steel type, and Stainless Steel type are available. -Features- -Use as rollers for sliding doors or carriers. -Heavy-duty -This product can accept a polished hexagonal steel bar that is available commercially. -Hardened-steel guide rollers are wear-resistant and prevent damage from intrusion of foreign matter such as chips. -Materials- Body: S45C steel, Electroless nickel plated SCM435 Steel, Black oxide finished, Heat treated to Rc40-45 Stainless steel(SUS303) Bearing: Steel, Stainless steel(SUS440C) Retaining Ring: Steel, Stainless steel(SUS304) -Datasheet- https://www.imao.co.jp/files/on-cat/pdf/en/grl-v-e.pdf
