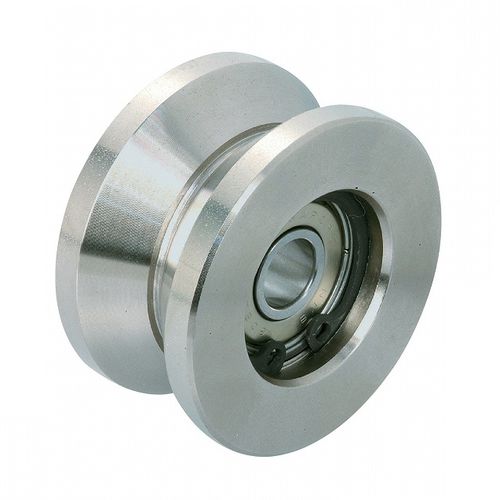

Bearing wheel type roller GRL-S2-Y
guideconveyingtensioner

Bearing wheel type roller - GRL-S2-Y - Imao Corporation - guide / conveying / tensioner
Bearing wheel type roller - GRL-S2-Y - Imao Corporation - guide / conveying / tensioner
Add to favorites
Compare this product

Go to the Imao Corporation website for more information

Characteristics

Type
bearing, guide, conveying, tensioner, drive
Material
steel
Applications
for sliding doors
Other characteristics
with ball bearing, for heavy loads, V-form, heavy-duty
Outer diameter

Min.: 50 mm
(1.969 in)

Max.: 70 mm
(2.756 in)

Inside diameter

Min.: 10 mm
(0.39 in)

Max.: 15 mm
(0.59 in)

Width

Min.: 27 mm
(1.06 in)

Max.: 39 mm
(1.54 in)

Load capacity

Min.: 3,190 N

Max.: 12,390 N

Description

Y GROOVE GUIDE ROLLERS (DOUBLE BEARINGS) -Features- -Use as rollers for sliding doors or carriers. -This product can accept a polished round or angle steel bar that is available commercially. -Heavy-duty -Materials- Body: S45C steel, Electroless nickel plated Bearing/Retaining Ring: Steel -Datasheet- https://www.imao.co.jp/files/on-cat/pdf/en/grl-s2-y-e.pdf
