Clamping screw PCS
thrustsocket headhex socket

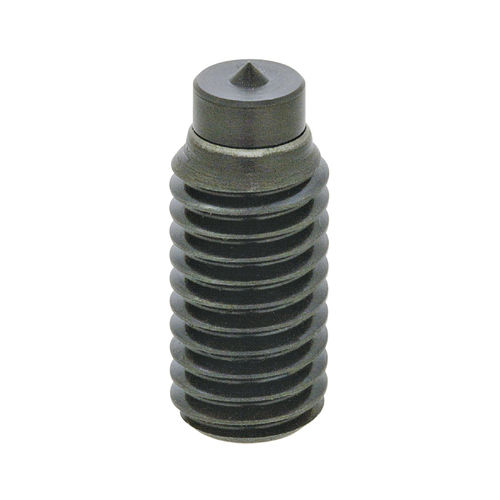

Clamping screw - PCS - Imao Corporation - thrust / socket head / hex socket
Clamping screw - PCS - Imao Corporation - thrust / socket head / hex socket
Add to favorites
Compare this product

Go to the Imao Corporation website for more information

Characteristics

Applications
clamping, thrust
Head
socket head
Drive type
hex socket
Materials
steel
Other characteristics
threaded, corrosion-resistant
Diameter

Max.: 10 mm
(0.394 in)

Min.: 5 mm
(0.197 in)

Length

Max.: 90 mm
(3.54 in)

Min.: 43.5 mm
(1.71 in)

Description

The pointed tip grubs the workpiece. Made of wear-resistant hardened steel. Have internal hex for tightening the screw. Statistic Load Capacity (kN): 4.5 to 20 Thread Size: M5x0.8 M6x1 M8x1.25 M10x1.5 Length: 8.5 to 42 mm Pint Tip: 0.5 to 1.5 mm
