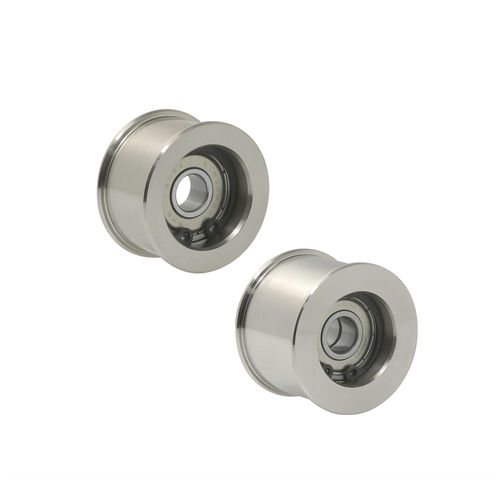

Roller pulley RABStensionmetalbearing
Add to favorites
Compare this product
Characteristics
- Type
- roller
- Applications
- tension
- Material
- metal
- Other characteristics
- bearing
- Pitch diameter
Min.: 30 mm
(1.18 in)Max.: 60 mm
(2.36 in)- Outside Diameter
Min.: 33 mm
(1.3 in)Max.: 66 mm
(2.6 in)- Hub diameter
Min.: 8 mm
(0.31 in)Max.: 12 mm
(0.47 in)- Width
Min.: 11 mm
(0.43 in)Max.: 41 mm
(1.61 in)
Description
Imao’s pulleys are available from a wide variety of materials and sizes.
RABS: Flanged Idle Pulleys
・ Lower flange height for conflict-free conveyance
・ Stable rotation with ball bearing
・ Steel body for high wear resistance
・ Applicable to 10 - 40mm belts
・ For 8mm, 10mm and 12mm diameter spindle
Use with PID Idler Pins.
Materials:
Pulley body: S45C Steel, Electroless nickel plated finish
Bearing and Retaining Ring: Steel
Datasheet: https://www.imao.co.jp/files/on-cat/pdf/en/rabs-e.pdf
