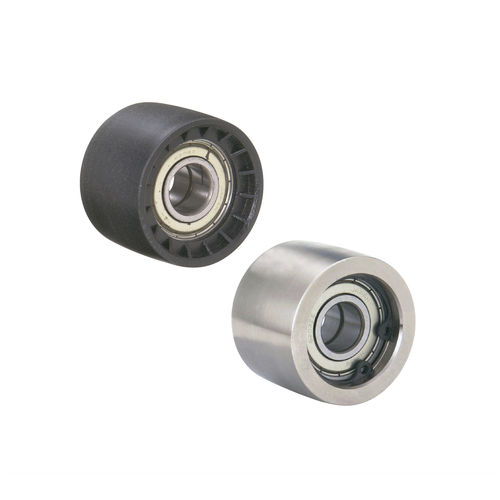

Roller pulley CTR, CTRSbelt tensionplasticmetal
Add to favorites
Compare this product
Characteristics
- Type
- roller
- Applications
- belt tension
- Material
- plastic, metal
- Other characteristics
- bearing
- Pitch diameter
Max.: 64 mm
(2.52 in)Min.: 34 mm
(1.34 in)- Outside Diameter
Max.: 64 mm
(2.52 in)Min.: 34 mm
(1.34 in)- Hub diameter
Max.: 20 mm
(0.79 in)Min.: 10 mm
(0.39 in)- Width
Max.: 70 mm
(2.76 in)Min.: 20 mm
(0.79 in)
Description
Imao’s pulleys are available from a wide variety of materials and sizes.
CTR, CTRS: Crown Pulley
・ Crown pulley for keeping belts from slipping out
・ Available from polyamide or steel body
Use with PID Idler Pins.
CTR
・ Glass-fiber reinforced polyamide body for high wear resistance
・ Stable rotation with moulded-in ball bearing
・ Applicable to 20 - 70 mm belts
・ For 10mm, 15mm and 20mm diameter spindle
Materials:
Pulley body: Glass-fiber reinforced polyamide plastic, Black color
Bearing: Steel
CTRS
・ Steel body for high wear resistance
・ Stable rotation with ball bearing
・ Applicable to 15 - 60mm belts
・ For 10mm, 15mm and 20mm diameter spindle
Materials:
Pulley body: S45C Steel, Electroless nickel plated finish
Bearing and Retaining Ring: Steel
Datasheet: https://www.imao.co.jp/files/on-cat/pdf/en/ctr_ctrs-e.pdf
