Groove pulley VIPV-beltbelt tensionplastic
Add to favorites
Compare this product
Characteristics
- Type
- groove
- Applications
- V-belt, belt tension
- Material
- plastic
- Other characteristics
- bearing
- Pitch diameter
Max.: 125 mm
(4.92 in)Min.: 50 mm
(1.97 in)- Outside Diameter
Max.: 136 mm
(5.35 in)Min.: 55.5 mm
(2.19 in)- Width
Max.: 24.5 mm
(0.96 in)Min.: 13 mm
(0.51 in)
Description
Imao’s pulleys are available from a wide variety of materials and sizes.

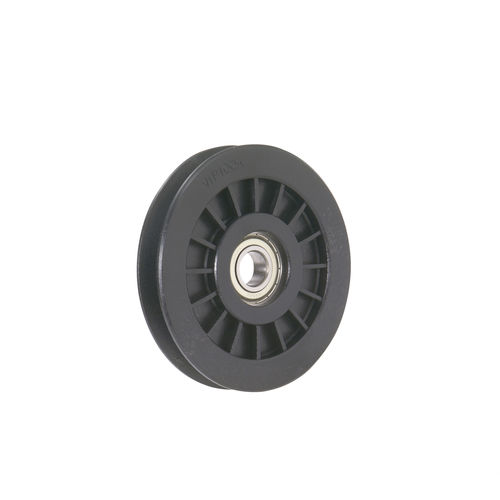

VIP: Plastic V Idle Pulleys
・ For M type, A type and B type V-belts
・ Glass-fiber reinforced polyamide body for high wear resistance
・ Stable rotation with moulded-in ball bearing
・ For 10mm and 15mm diameter spindle
Materials:
Pulley body: Glass-fiber reinforced polyamide plastic, Black color
Bearing: Steel
Datasheet: https://www.imao.co.jp/files/on-cat/pdf/en/vip-e.pdf
