Mechanical clamping fixture QLSWCmanualworkpiecemachining
Add to favorites
Compare this product
Characteristics
- Type
- mechanical, manual
- Applications
- workpiece, machining
- Other characteristics
- steel
- Clamping force
Max.: 7.5 kN
Min.: 2.3 kN
Description

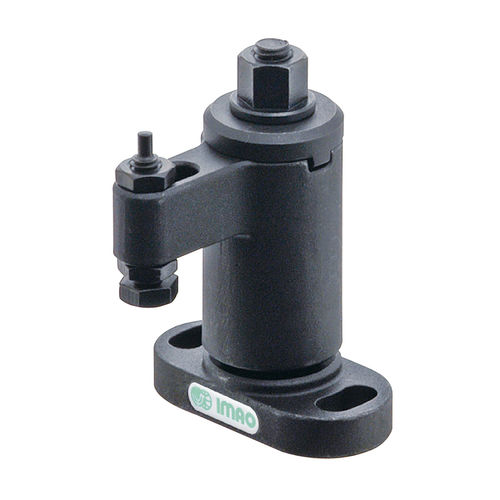

QLSWC: Swing Clamp for Torque Control
- Manual swing clamp for clamping-force control with a torque wrench
- Screw-locking mechanism allows for longer clamping stroke and greater clamping force
- Ideal for machining, assembly and inspection fixtures.
- Can clamp both rough and finished surfaces.
The clamp arm swings into position over the workpiece and clamps straight down by turning the hex head.
Swing direction of clamp arm: Clockwise (Right)
Clamping force: 2300 to 7500N
Allowable screw torque: 6 to 45 Nm
Materials
Base, Washer, Flange Nut, Clamping Spindle: S45C steel, quenched and tempered, Black oxide finish
Body: SCM440 steel, quenched and tempered, Black oxide finish
