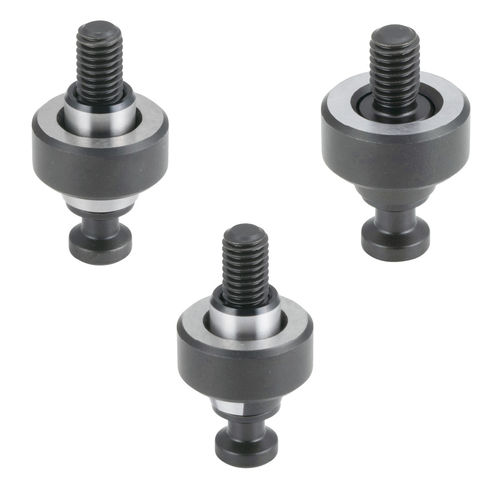

Steel clamping studs for zero-point clamping systems CP155-DS series
Add to favorites
Compare this product
Characteristics
- Other characteristics
- steel
Description
TAPERED RISER SCREWS
The workpiece can be raised to avoid tool interference with Clamping Module.
Tapered clamping screw for CP150, 151, and 152 Modular Pull Clamps.
Can be used for locating and clamping the workpiece.
-Materials-
Tapered Bushing: S45C steel, Black oxide finished, Precision ground
Clamping Screw: SCM435 steel, Quenched and tempered, Black oxide finished
Riser: S45C steel, Quenched and tempered, Black oxide finished, Precision ground
-Datasheet-
https://www.imao.co.jp/files/on-cat/pdf/en/cp155-ls-e.pdf
Catalogs
Modular Pull Clamping System
35 Pages
CLAMPS
106 Pages
