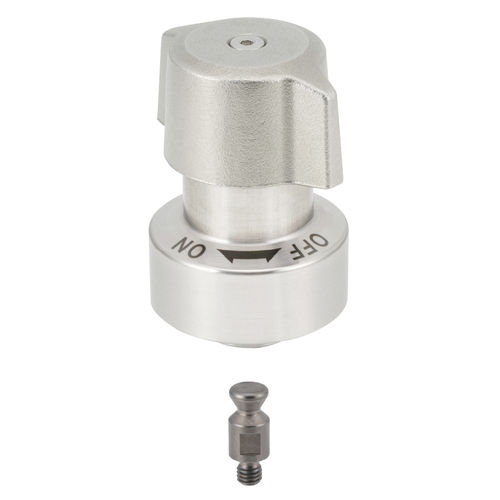

Panel quick fastener QCPCS-SUSstainless steelquarter-turn
Add to favorites
Compare this product
Characteristics
- Applications
- panel
- Material
- stainless steel
- Other characteristics
- quarter-turn
Description
Heavy Duty Pin Holding Clamps
One-Touch Fasteners are quick release fasteners for frequent changeover of machinery or fixture.
Quick and easy tool-less clamping reduces setup time in changeover.
IMAO's quick release fasteners are available in various clamping styles, quarter turn fasteners, ball locking fasteners and pin holding fasteners.
- Feature -
Suitable for space-saving application
Higher clamping force
- Technical Information -
Clamping force: 150 / 250N
Holding Force: 450 / 750N
Shear strength: 1100 /1800 / 2500N
Tensile strength: 1800 / 2400N
Heat-resistant Temperature: 130 / 180 degrees Celsius
Materials
Body: SUS303 stainless steel
Wedge: SUS630 stainless steel, Precipitation hardened
Knob: SCS13 stainless steel（Equivalent to SUS304）
Ball: SUS440C, stainless steel, Quenched and tempered
Spring: SUS304WPB stainless steel
