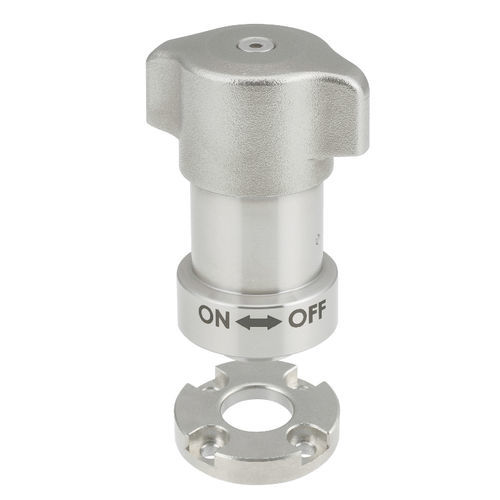

Panel fastener QCWESA

stainless steelwith wedge

RETRACTABLE HEAVY DUTY KNOB-LOCKING PINS One Touch Fasteners provide fast, secure locking and unlocking for fixture plates, panels, covers, machine components, and more. Simply turn the knob or push the button to lock, eliminating the need for tightening screws. These quick and easy tool-less clamping fasteners reduce setup times and boost productivity. IMAO's quick release fasteners are available in a variety of clamping styles to suit your specific needs, including quarter turn fasteners, ball locking fasteners and pin holding fasteners. - Feature - The shank retracts to enable slide or door applications The highest clamping force & holding force ON / OFF indicator for safety - Technical Information - Clamping Force(N): 1000, 2000 Holding Force(N): 2500, 5000 Shear strength(N): 10000 / 15000 Tensile strength(N): 4000 / 8000 Heatresistant Temperature: 180 degrees Celsius - Materials - Body: SUS303 stainless steel Shank: SCM440 steel Electroless nickel plated Wedge: SCM435 steel, Electroless nickel plated, Quenched and tempered Knob: SCS13 stainless steel (Equivalent to SUS304) Ball: SUS440C stainless steel, Quenched and tempered Spring A: Equivalent to SWOSC-V steel Spring B: SUS304WPB stainless steel
