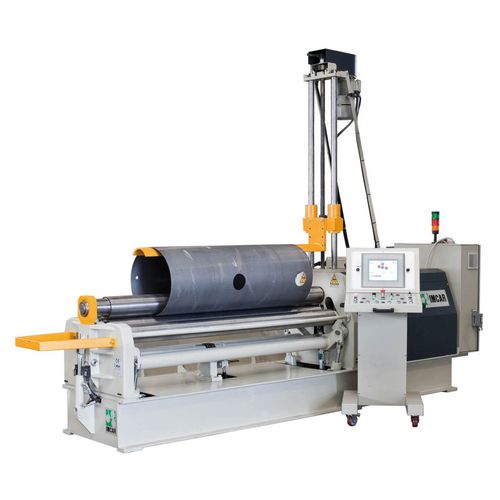

4-roller plate bending machine HI-TECH

hydraulicnumerical controlautomatic

4 roll plate bending machine with initial pre-bend – bending – final pre-bend all in one stroke Machine fully hydraulic for a reduced maintenance and a high efficiency Hardened and ground roll Electronic Positioner to produce in automatic polycentric and tube, working step by step with fixed speeds of rotation, pinching and bending of the plate; archive memory of 100 programs of 30 steps Bending process without unbent parts even with small diameters Hydraulic automatic shoulder opening Product details The HI-Tech Hydraulic is a four-roll bending machine that allows in a single step the initial pre-bending, then proceed with the bending and the final pre-bending. The bending is completely hydraulic, so the required maintenance is minimal and the efficiency of the machinery always remains high. The rolls of the machines are all hardened and ground, Its numerical control configuration allows to produce automatically both circular and polycentric shapes, allowing the management of each passage, of the speed of rotation and curvature of the sheet. The machine allows to keep in memory 100 programs of 30 steps each. This model lets bend with reduced flat parts even on small diameters. The shoulder opening is fully automated.
