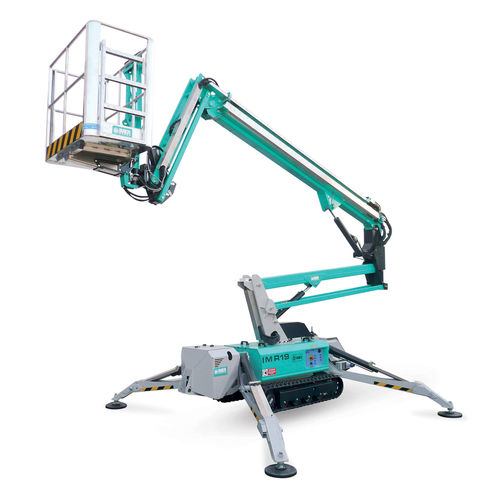

Crawler articulated boom lift IM R 19 SA

electrichydraulicoutdoor

Removable wired control box. Hydraulically adjustable tracks width. Total weight of the machine 2300 kg Standard equipment Automatic levelling outriggers Emergency hand pump Cylinder holding valve Hour meter Momentum device Load cell Hydraulic Jib Rubber tracks Hydraulically adjustable tracks width 230V - 16 A electro-pump for indoor use Air / Water outlet in the platform 230V - 16 A outlet in the platform Honda GX390 petrol engine - 11 HP 3600 rpm Yanmar L100N diesel engine - 9.9 HP 3600 rpm Removable wired control box Double speed traction Benefits Hydraulically adjustable tracks width: more stability and traction to move around the building site or rough terrain State-of-the-art removable control panel: fast and versatile use of the machine Proportional and simultaneous electro-hydraulic controls: efficiency and safety for operators Automatic levelling outriggers: maximum easiness of use and safety Permanent weight control device and momentum device for improved safety and performance Slewing 360° (not continuous): outstanding aerial accessibility in any work situation Basket rotation ± 75°: complete placement on working site in any condition Compact size, with limited overall outrigger footprint Engine guarded for safety and working protection Aluminium platform 1.40x0.70x1.10 mts. Innovative design with fully enclosed structure
