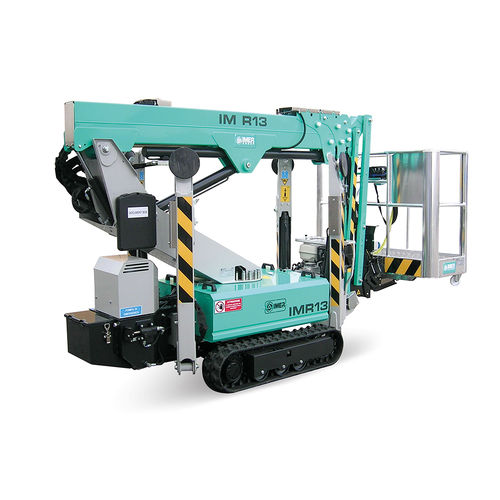

Crawler telescopic boom lift IM R 13 T

hydraulicelectricoutdoor

Removable wired control box. Total weight of the machine 1460 kg Standard equipment Automatic levelling outriggers Emergency hand pump Cylinder holding valve Hour meter Momentum device Load cell Hydraulic Jib Rubber tracks 230V - 16 A electro-pump for indoor use Air / Water outlet in the platform 230V - 16 A outlet in the platform Honda GX390 petrol engine - 11 HP 3600 rpm Removable wired control box Benefits Removable wired control panel for remote control of the platform during translation. Electro-hydraulic controls: efficiency and safety for the operators. Automatic levelling outriggers: maximum easiness of use and safety. Permanent weight control device and momentum device for improved safety and performance. Turret slewing 360° (not continuous): aerial accessibility in any work situation. Compact overall sizes and reduced stabilization footprint (2.7 x 2.8 m). Aluminium platform 1.30 x 0.75 x 1.10 m. Reduced weight (1500 kg) for maximum transportability. Hydraulically adjustable tracks width (optional): higher stability and greater traction to move around the building site and rough terrain.
