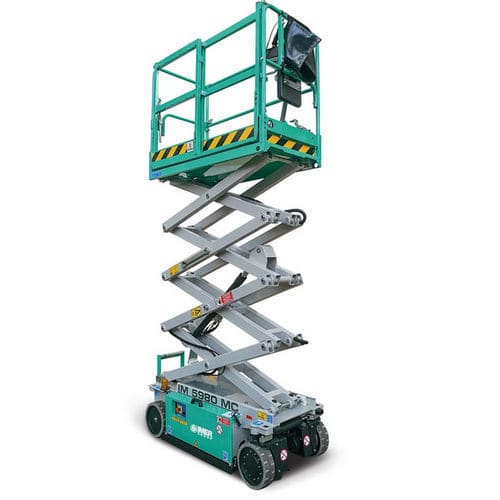

Self-propelled scissor lift platform IM 80 MC series

electricindoor/outdoor

Two models with lateral deck extension. Drivable at full height with lateral deck extended. For indoor use and for indoor/outdoor use Standard equipment Electric front wheel drive motors Negative electromagnetic parking brakes with electric disengagement 90° electric steering Lateral deck extension 0.36 m Manual emergency lowering device Cylinder holding valve Traction batteries 24V-185Ah C5 Battery charger with automatic switch-off Audible motion alarm, horn, hour meter Inclinometer with cut out and alarms Mechanical wheel drive release for emergency hauling Cushioned non-marking tyres Electrical scissor protections Pothole protection Battery control system with low-voltage cut-out protection Overload sensor CE - EN 280 marking 220V cable predisposition Flashing beacon Control panel on the platform with capacitive buttons, proportional controls and diagnostics Benefits Electric drive motors: less consumption, longer cycle times All the components are contained inside the chassis and are easily accessible, nothing remains outside Drivable at full height with lateral deck extended Excellent speed and gradeability Full capacity allowed on deck extension Rigid chassis and scissor pack The lateral deck extension allows for the loading of bulky loads Sliding gate on the lateral deck extension for easy loading/unloading of bulky materials
