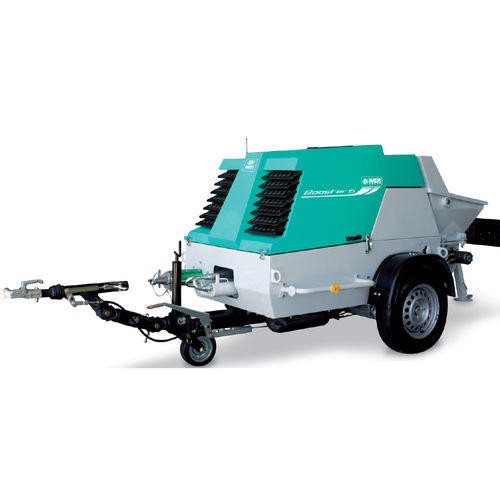

Trailer-mounted concrete pump Booster 15
for construction

Trailer-mounted concrete pump - Booster 15 - IMER International SPA - for construction
Trailer-mounted concrete pump - Booster 15 - IMER International SPA - for construction
Trailer-mounted concrete pump - Booster 15 - IMER International SPA - for construction - image - 2
Trailer-mounted concrete pump - Booster 15 - IMER International SPA - for construction - image - 3
Trailer-mounted concrete pump - Booster 15 - IMER International SPA - for construction - image - 4
Trailer-mounted concrete pump - Booster 15 - IMER International SPA - for construction - image - 5
Trailer-mounted concrete pump - Booster 15 - IMER International SPA - for construction - image - 6
Trailer-mounted concrete pump - Booster 15 - IMER International SPA - for construction - image - 7
Trailer-mounted concrete pump - Booster 15 - IMER International SPA - for construction - image - 8
Trailer-mounted concrete pump - Booster 15 - IMER International SPA - for construction - image - 9
Trailer-mounted concrete pump - Booster 15 - IMER International SPA - for construction - image - 10
Add to favorites
Compare this product


Characteristics

Configuration
trailer-mounted
Applications
for construction
Output

Min.: 2 m³/h
(70.6 ft³/h)

Max.: 15 m³/h
(529.7 ft³/h)

Pumping pressure

70 bar
(1,015.3 psi)

Power

22.3 kW
(30.3 hp)

Weight

1,610 kg
(3,549 lb)

Description

2-cylinder piston pump, hydraulic driven. Diesel engine. Ideal for pumping concrete and self levelling floor screeds and for shotcreting. Standard Equipment Liquid cooled diesel engine - Yanmar 3TNV82A-BDYE Stage 5 Hopper with agitator shaft Hopper grid with 12V electric vibrator Free flow hydraulic system Pumping group with S-valve tube Victaulic 4 "delivery manifold (Ø 100 mm) ANTI-SHOCK control panel Hour meter Cable remote control 5 functions Tool kit for replacing pumping pistons Manual greasing pump Axle with wheels 195R14 Adjustable handling bar (Booster 15 version) EU road-towable approved (Booster 15 R version) Applications Ideal for small and medium-sized construction sites, especially if located in places where the operating spaces are small and / or difficult to reach with other pumping systems. It is suitable for pumping: • Concrete with a maximum grain size of 25 mm (1“) • Fiber-reinforced concrete • Self-compacting concrete • Refractory concrete (only for wet application) • Grouting or fill core grout • Self-levelling cement / anhydride based flow screeds It is suitable for spraying: • Shotcrete • Shotcrete with setting accelerating additives • Structural mortar, also fiber-reinforced
