Radio control WAVE2 L12
with buttons12-buttonon/off

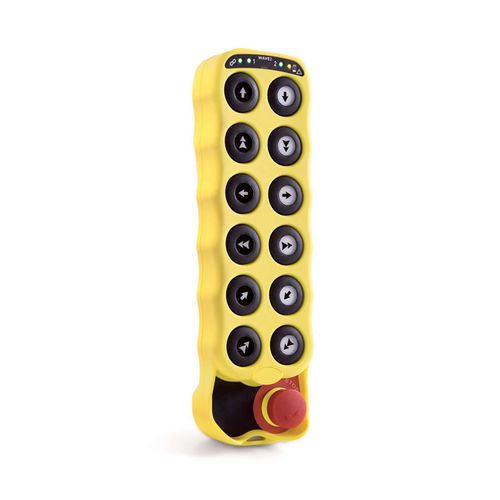

Radio control - WAVE2 L12 - IMET Radio Remote Control - with buttons / 12-button / on/off
Radio control - WAVE2 L12 - IMET Radio Remote Control - with buttons / 12-button / on/off
Radio control - WAVE2 L12 - IMET Radio Remote Control - with buttons / 12-button / on/off - image - 2
Radio control - WAVE2 L12 - IMET Radio Remote Control - with buttons / 12-button / on/off - image - 3
Radio control - WAVE2 L12 - IMET Radio Remote Control - with buttons / 12-button / on/off - image - 4
Radio control - WAVE2 L12 - IMET Radio Remote Control - with buttons / 12-button / on/off - image - 5
Radio control - WAVE2 L12 - IMET Radio Remote Control - with buttons / 12-button / on/off - image - 6
Add to favorites
Compare this product


Characteristics

Type
radio
Control interface
with buttons
Number of buttons
12-button
Features
on/off
Protection level
IP65
Product applications
industrial, for crane, winch, for vehicles, for machines, for vacuum pumps, for boats
Battery type
Ni-MH
Other characteristics
with feedback
Certifications
CE certified, FCC certified, IC certified
Reach

100 m
(328'01" )

Length

72 mm
(2.83 in)

Width

42 mm
(1.65 in)

Temperature

Min.: -25 °C
(-13 °F)

Max.: 70 °C
(158 °F)

Frequency

Min.: 433.05 MHz

Max.: 2,400 MHz

Continuous working time

23 h

Description

Consisting of ON/OFF commands, this configuration with 12 two-step buttons, status and feedback LEDs, allows remote controlling complex and sophisticated machinery that require more control options. It has “AFA” technology (Adaptive Frequency Agility). The Pin Code option allows to limit the use only to authorized personnel and is optionally equipped with an LED illuminator. Prototyping and series production IMET supports Manufacturers and System Integrators in the customization of the product, based on the needs of their application. IMET makes prototypes and pre-series. Once the specifications are defined, the customer plans the supplies. The technology and installations on which IMET has invested allow a large and diversified production capacity, thus ensuring product repeatability in times that are appropriate to customer needs. Durability With a view to sustainability and preservation over time, they are made of high-quality materials and components. IMET remote controls are designed for use in the most extreme environments. To ensure durability, the products are tested internally with instruments that verify the degree of protection from penetration of liquids and dust, aging with climate tests, UV light, salt spray and incandescent wire. Repairable over time Durable and repairable, this is the perspective on which IMET products are designed, all in function of a paradigm of environmental sustainability and cost reduction. There’s certainty of spare parts supplies over time, also for systems at the end of lifecycle, thanks to a structured and well-stocked warehouse.
