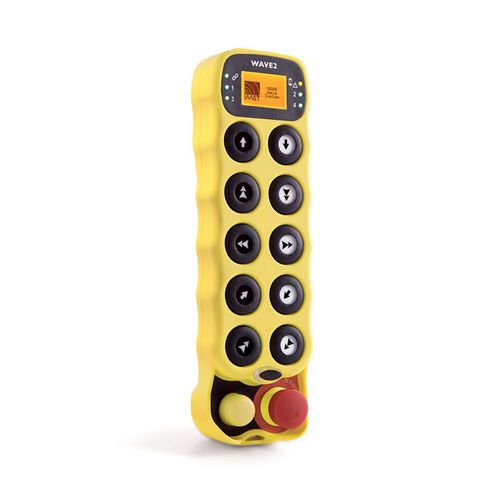

Radio control WAVE2 L10 DM
with buttons10-buttonon/off

Radio control - WAVE2 L10 DM - IMET Radio Remote Control - with buttons / 10-button / on/off
Radio control - WAVE2 L10 DM - IMET Radio Remote Control - with buttons / 10-button / on/off
Radio control - WAVE2 L10 DM - IMET Radio Remote Control - with buttons / 10-button / on/off - image - 2
Radio control - WAVE2 L10 DM - IMET Radio Remote Control - with buttons / 10-button / on/off - image - 3
Radio control - WAVE2 L10 DM - IMET Radio Remote Control - with buttons / 10-button / on/off - image - 4
Add to favorites
Compare this product


Characteristics

Type
radio
Control interface
with buttons
Number of buttons
10-button
Features
with emergency stop, on/off
Protection level
IP65
Product applications
for vacuum pumps, industrial, for crane, for hoists, for vehicles, for machines, for drilling, for concrete mixers, for forklifts, for hoists, forestry, for boats
Battery type
Ni-MH
Other characteristics
with feedback, with integrated display
Certifications
CE certified, FCC certified, IC certified
Reach

100 m
(328'01" )

Length

72 mm
(2.83 in)

Width

42 mm
(1.65 in)

Weight

315 g
(11.1 oz)

Temperature

Max.: 70 °C
(158 °F)

Min.: -25 °C
(-13 °F)

Frequency

Max.: 2,400 MHz

Min.: 433.05 MHz

Continuous working time

23 h

Description

It’s intended for complex applications and more sophisticated machines with ON/OFF controls. Configuration with 10 two-step buttons, status and feedback LEDs. It features “AFA” technology (Adaptive Frequency Agility). The Pin Code option allows to limit its use only to authorized personnel and is optionally equipped with an LED illuminator. Where the LED feedback is no longer sufficient, WAVE2 L10 DM finds its ideal location by providing the operator with the necessary feedback information via a monochrome 1.5″ display. Prototyping and series production IMET supports Manufacturers and System Integrators in the customization of the product, based on the needs of their application. IMET makes prototypes and pre-series. Once the specifications are defined, the customer plans the supplies. The technology and installations on which IMET has invested allow a large and diversified production capacity, thus ensuring product repeatability in times that are appropriate to customer needs. Durability With a view to sustainability and preservation over time, they are made of high-quality materials and components. IMET remote controls are designed for use in the most extreme environments. To ensure durability, the products are tested internally with instruments that verify the degree of protection from penetration of liquids and dust, aging with climate tests, UV light, salt spray and incandescent wire. Repairable over time Durable and repairable, this is the perspective on which IMET products are designed, all in function of a paradigm of environmental sustainability and cost reduction.
