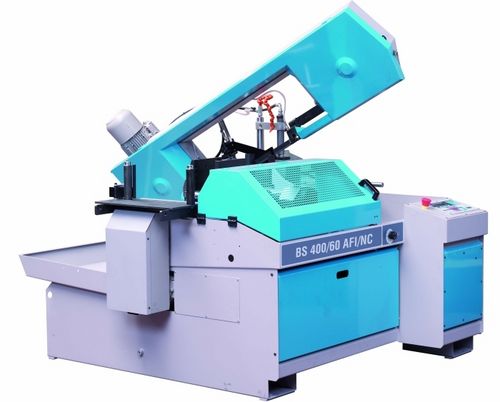

Band saw ø 310, 280, 400 x 250 mm | BS 400/60 AFI-NC

horizontalfor steelfor aluminum

The fixed hydraulic vice equipped with a pressure reducer and on the unloading side it has anti burr hydraulic vertical vice. The adjustment of the blade tension checked by an end stroke is from the front of the saw frame. The saw frame is quickly lowered towards the material due to the mechanical device ( position sensor) and automatically detects the start of the cutting point. There is additional bearing for the alignment of blade and blade guides with hard metal pads. There are 99 different cutting lengths and cuts can be stored in the memory which can be also repeated more than once. The display shows the machine status and CNC driver with programming of all operations. High precision of positioning is possible due to the incremental feeding on circulating ball screw by auto braking electric motor with inverter having feeder movements on chrome bars. the blade thickness can be calculated automatically. The maximum stroke length is 515mm with feeder opening of 400 mm.
