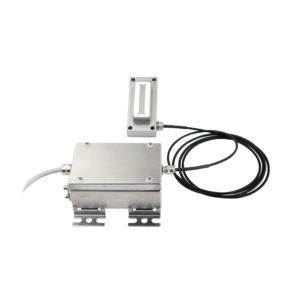

Insertion humidity probe SONO-Ex MIX mini HC

ATEXstainless steelcompact

The stainless steel housing of the probe and the ceramic window make the SONO-Ex MIX Mini a wear-resistant mixer probe for daily use. The probe is firmly connected to the electronics housing in which the TRIME TDR transmitter is located. This generates a high-frequency TDR pulse with 1 GHz. The TDR pulse travels along the waveguide of the probe and creates an electromagnetic field around the probe in the material. The transit time of this pulse is measured with a resolution of one picosecond (1 × 10-12) to determine humidity and conductivity. Advantages • The compact measuring window of 90 x 36 mm is also suitable for installation in confined areas • In this way holding arms in the intensive mixer can be avoided • The probe automatically recalibrates itself in the event of abrasion • Installation in screw conveyors is also quick and easy • Thanks to the special ceramic, the mixer probe is extremely robust and has a long service life • You receive precise measured values through a representative measuring field and the disk-shaped radar scan • The measurement behavior is optimized for color and fine components in the mixture Applications The SONO-Ex MIX Mini mixer probe is suitable e.g. for installation in: • Intensive mixer • Special mixer • container • screw conveyer • Material hopper • Conveyor belts As a special version, Low Density (LD) or High Conductivity (HC), it is also suitable for general applications in process technology with bulk materials of low density or high conductivity.
