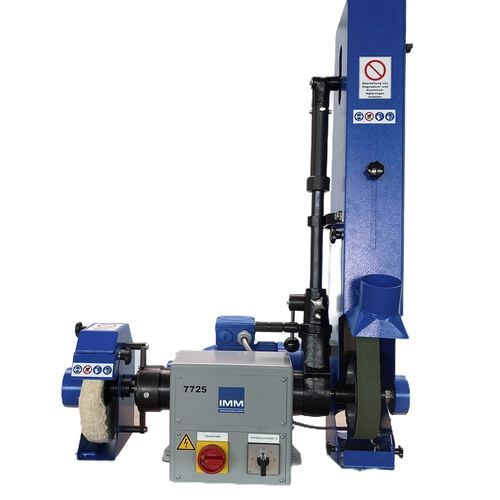

Metal grinding polishing machine 7725

belt

Robust lowest vibration, therefore prevention of vibration endused harm Continuous operation Operation modes S1 for continuous operation Safe Build to the latest safety standards with protection covers and optional safe-stop. Durable Heavy duty materials and components Made in Germany Quality 100 % Made in Germany The series 7725 is a machine with one continuous spindle. It is available for belt grinding and /or polishing. Machine Characteristic Robust and rigid design and therefore low in vibration Compact design Main switch with low voltage trip CE-conformity Models Double ended design, combinable with belt or polishing wheel protective covers Available as work bench version or for standing operation with stand Available for aluminium processing Various drive options possible (see table) Options Frequency converter for infinitely variable speed control Reversal of direction of rotation Special protective covers Machine lamp Technical data Belt dimensions - max. 30 x 2.000 mm, max. 50 x 2.000 mm Contact wheels - max. Ø 200 mm, 50 mm Width Polishing wheels - Ø 250 mm, 50 mm Width Spindles - Ø 20 mm Voltage - 400 V, 3/N/PE, 50 Hz Operation mode, protection class - S1, IP 54 Extraction pipe - Ø 60 mm / 80 mm Colour - Grey (RAL 7040), Blue (RAL 5017) Weight base machine - approx. 70 - 100 kg
