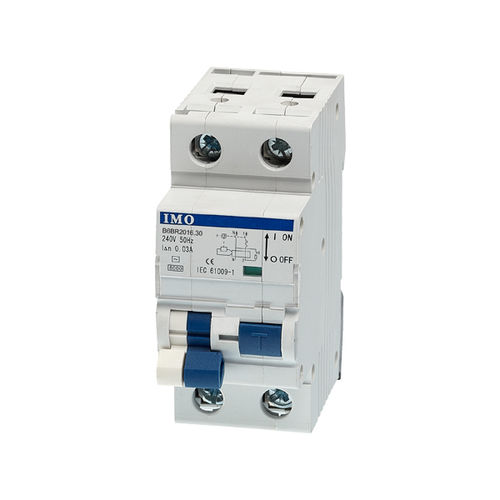

Thermal-magnetic circuit breaker B6BR1N02-30

overcurrentlow-voltagepower

RCBO , 30mA, B Curve 1 Pole + Neutral, 230VAC Residual Current Type AC Specifications • Neutral Position R • Number of Modules 2 • Residual Current Type AC • Short Circuit Capacity 6.00 • Temperature Range °C -25 to 55 °C • Number of Poles 1P+N • Tripping Curve B • Cable sizes (AWG) 2AWG • Cable size (mm²) 35mm The IMO range of miniature circuit breakers have been designed for protection of electrical installations against overload and short circuits and are manufactured in accordance with IEC 60898-1 Technical Data • Handle central-tripping function for circuit fault indicating • New front design; cover and handle in arc shape • Contact position indicating window; transparent cover to carry label • High short circuit capacity • Suitable for terminal and Pin/Fork type busbar connection • Finger protected connection terminals • Handle padlock device Tripping characteristics in accordance with B, C and D type curves • Curve B: 3-5 In • Curve C: 5-10 In • Curve D: 10-20 In
