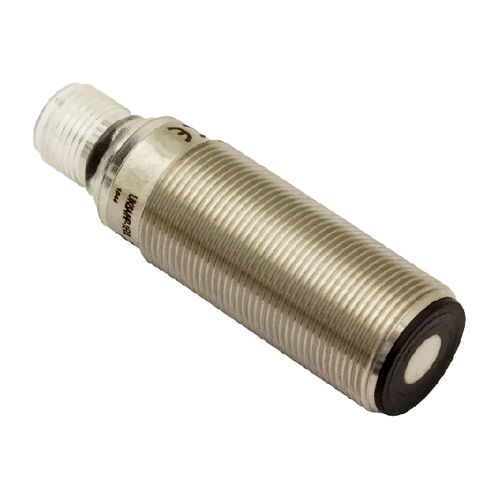

Diffuse reflective ultrasonic sensor UK6A/H2-1E

stainless steel

Ultrasonic Switch M18 Diffuse, M12 Plug DC 4-20mA, Sn=40 to 300mm Stainless Steel Short Body M18 Short Body Ultrasonic • M18 diffuse and retro-reflective models • Digital output • Analogue output Specifications Diffuse models : • Nominal sensing distance : 300mm ; 800mm ; 1,200mm • Minimum sensing distance : 40 mm ; 60 mm ; 80 mm • Beam angle : 7° ± 2° ; 8° ± 2° • Switching frequency 8 Hz ; 5 Hz • Operating voltage : 10...30 Vdc • Max ripple content 5 % • Output type PNP or NPN - NO/NC selectable • analogue output: 0...10 V - 4...20 mA • Output current 100 mA • Output voltage drop ≤ 2,2 V (@ I = 100 mA) • No-load supply current ≤ 35 mA @ Val = 30 V • Leakage current ≤ 10 μA @ 30 V • Power on delay ≤ 100 ms • Temperature range -20°C...+70°C • Temperature drift of Sr ≤ 5 % • Short-circuit protection (autoreset) • Weight plastic version: 65 g connector / 75 g cable • metallic housing: 80 g connector / 140 g cable • LEDs yellow: output • green: aligment • Protection degree : IP67 • EMC : IEC60947-5-2 • Housing material plastic housing: PTB • metal housing: AISI316L • Active head material : epoxy - glass resin • Connection : M12 plug cable exit 2 m cable exit
