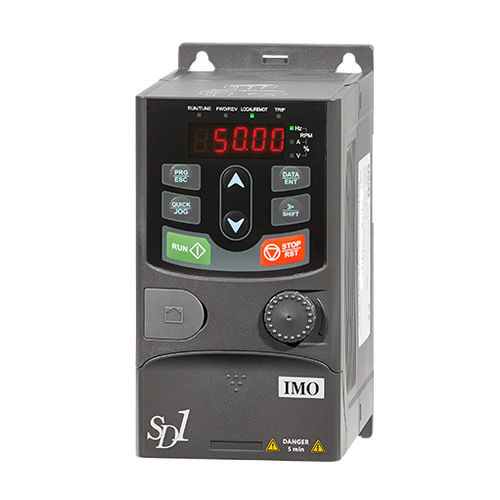

Three-phase variable-speed drive SD1-2.5A-23
analogdigitalModbus

three-phase variable-speed drive
three-phase variable-speed drive
Add to favorites
Compare this product


Characteristics

Type
three-phase, digital, Modbus, analog
Mounting
housed
Applications
industrial, for asynchronous motors
Protection class
IP20
Other characteristics
EMC, torque vector, static, torque control, with PID controller, Modbus
Power

0.4 kW

Intensity

2.5 A

Output frequency

Max.: 400 Hz

Min.: 0 Hz

Description

Comprehensively specified inverters for AC motors: 0.4kW-110kW (0.5HP-150HP). The SD1 range is the ultimate variable speed drive for you! Easy to set up, and specified for use in virtually any application, the SD1 is IMO’s first complete range of variable speed drives which offer STO (SIL2 / SIL3) dependent upon model, along with a huge range of enhanced features, normally found on much more expensive inverter drives. A range of EMC filter options makes the SD1 suitable for virtually every industrial, commercial or domestic application. Other features standard to the series include: integral Modbus-RTU / RS485, IP20 protection rating, up to 150% starting torque, detachable keypad, DC injection braking, motor auto-tune, HDI input (pulse), internal C3 filter (≥4kW/5.5HP), optional C3 filter (≤2.2kW/3HP), optional C1 & C2 filter, integral brake chopper (≤30kW/40HP), UL and TUV approval, 2 year warranty. SD1 Series Variable Speed Drive 200-240 V Three Phase Input, Three Phase Output, IP20 Protection Specifications • Built in Communication : Y • Field Bus Communication : Y • Filter Included : Y • Housing Type : Metal • Input Phase : Three • Number of Analogue Inputs : 2 • Output Type : Relay • Rated Voltage (V) : 2.5 • Supply Voltage (V) : 200-400 • IP Rating : IP20 • Rated Power (HP): 0.50
