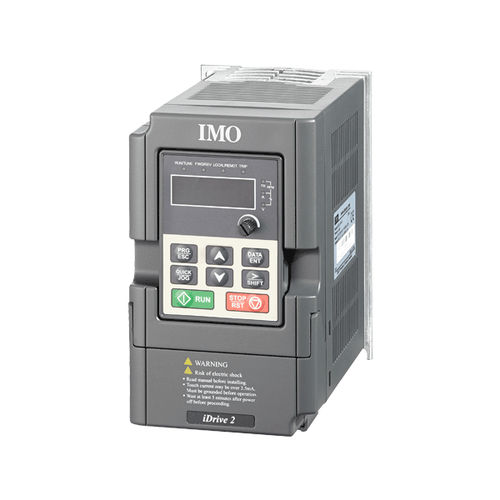

Single-phase variable-speed drive XKL-040-21

analogdigitalModbus

Cost effective inverters for AC motors: 0.4kW-2.2kW (0.5HP-3HP). If you are a machine builder looking for a high volume cost-effective solution, or an occasional user looking for a drive that is easy to set up, the iDrive 2 is the ultimate variable speed drive for you! iDrive 2 is simple to commission using the detachable keypad. For volume users there is a free software package that will allow the bulk transfer of complete parameter sets. A range of EMC filter options makes the iDrive 2 suitable for virtually every industrial, commercial or domestic application. Other features standard to the series include: up to 150% starting torque, PID control, brake chopper built-in, simple parameter menu, detachable keypad with potentiometer, DC braking, thermostatic cooling fan, drive mount filter option, password function, IP20 protection rating, C2 and C3 filter options, side by side mounting (fan cooled models only), 5 operation indication LEDs, 0-10V & 0-20mA analog inputs and outputs, 2 year warranty. iDrive 2 - XKL Series Variable Speed Drive 200 V Single Phase Input, Three Phase Output, RoHS Compliant Specifications • Built in Communication : Y • Filter Included : N • Housing Type : Metal • Input Phase : Single • Supply Voltage (V) : 200-240 Key Features • RS485/Modbus RTU built-in • Up to 150% starting torque • Detachable Keypad • PID Control mode as standard • Brake chopper built-in • DC injection braking • 0-10V & 4-20mA analog inputs • 4/5 Digital inputs • Password function • 2 year warranty • CE certified • C2 & C3 filter options • RoHS compliant
