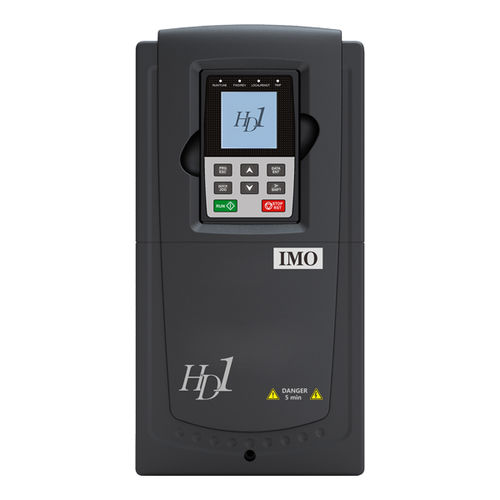

Three-phase variable-speed drive HD1-16A-23

vector controlanalogdigital

Dual rated inverters for AC motors: 0.75kW-500kW (1HP-670HP). The HD1 range of inverters are high-performance, open loop vector control inverters specifically designed for controlling asynchronous AC induction motors and permanent magnet synchronous motors. Utilising the most advanced sensorless vector control technology, the HD1 range offers unparalleled reliability, environmental adaptability, high precision and stable performance. The HD1 offers some significant advantages to the customer including a huge range of functions with simple operation, 3 international communication protocols (ModbusRTU, Profibus and CAN) and international certification from TUV and UL. Other features standard to the series include: permanent magnet motor control, high speed processor, up to 150% starting torque, torque vector control, IP20 protection rating, motor auto tune (static and dynamic), DC injection braking, flux braking, PID control, integral C3 filter, C1 and C2 filter options, advanced LCD detachable keypad, 2 year warranty. HD1 Series Variable Speed Drive 200 V Three Phase Input Three Phase Output, IP20 Protection Specifications • Built in Communication Y • Filter Included Y • Housing Type Metal • Input Phase Three • Number of Digital Inputs 9 • Number of Analogue Inputs 3 • Output Type Relay • Supply Voltage (V) 200 • IP Rating IP20 • Rated Power (HP) 5.50
