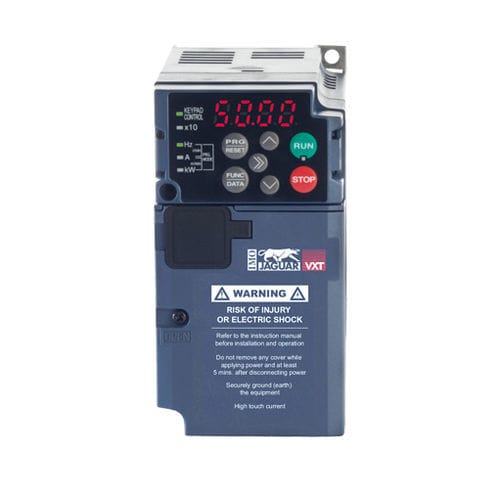

Three-phase variable-speed drive VXT-6A-4

with housingfor motorsfor inverters

Since its inception in 1984, the IMO Jaguar has represented the cutting-edge of AC inverter design and the latest IMO Jaguar VXT represents the most advanced high performance AC inverter we have ever produced. Packed with features including onboard 200 step PLC functionality, STO (Safe Torque Off) and advanced communications protocols, the Jaguar VXT sets the standard for AC inverter technology letting the user maximise performance whilst minimising additional component requirements in the overall application design. With IMO’s unique 5 Year Warranty and the support of its extensive technical resources around the world, the IMO Jaguar VXT is the natural choice for today’s engineer creating tomorrow’s design. Other features standard to the series include: motor auto tune, DC injection braking, optimum energy control, carrier frequency up to 16kHz, switch between two motors, supports PM DC motor operation, sink/source logic, internal brake chopper to 22kW, STO with SIL3, UL and cUL approvals. Jaguar Inverter 3Phase, 400v Multi Duty, (1.5-2.2kW) IP20, SIL3 Specifications • Built in Communication : Y • Filter Included : N • Housing Type : Metal • Input Phase : Three • IP Rating : IP20
