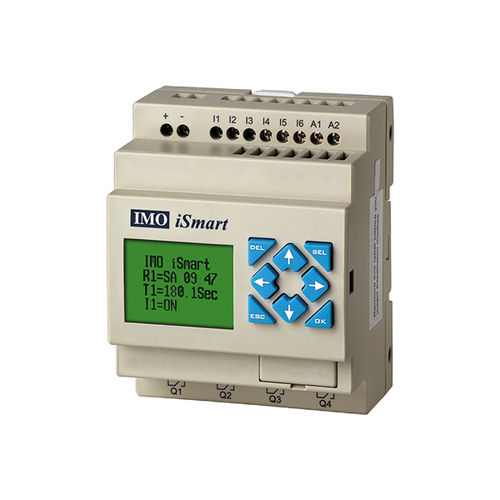

DIN rail programmable relay SMT-EA-R10-V3
inputs

DIN rail programmable relay
DIN rail programmable relay
Add to favorites
Compare this product


Characteristics

Type
DIN rail
Input/output
inputs

Description

iSmart Intelligent Relay - V3 110-240VAC, HMI, 6 DI (AC) 4 Rly out (8A, 2A) Ladder, FBD, 15 Tmr, 15 Cntr Key Features • Digital, Analogue & Temperature Inputs • Relay, Transistor & Analogue Outputs • Powerful Control Logic in Ladder or Functional Block Diagram • Available with or without Text HMI Screen • Programmable Function Keys • PID Control (up to 30 Loops) • Maths Functions • Retentive Data Registers • High Speed Inputs & PWM Outputs • Link function • Multi-Language Selectable • Expansion Modules for More I/O Technical Specifications • Operating Temperature : -20 to +55°C • Storage Temperature : -40 to +70°C • Humidity : 5 - 90% RH no frost • Vibration IEC60068-2-6 (0.075mm Amplitude / 1G Acceleration) • Impact Resistance : IEC60068-2-28 (15g peak, 1ms duration) • Installation : IP20, Direct or DIN Rail Mount (TS35 - 35mm) • Noise Resistance : ESD: ±4kV, Air Discharge: ±8kV, EFT: Power AC: ±2kV, AC: ±1kV, CS: 0.15-80mHz 10V/m, • RS: 80-1000mHz 10V/m, EMI: EN55011 Class B • Approvals : CE, UL, cUL • Dimensions : - 72x90x59.6mm - 126x90x59.6mm - 72x90x59.6mm - 126x90x59.6mm - 38x90x59.6mm • Weight : 230g ; 345g ;220g ;345g ;190g
