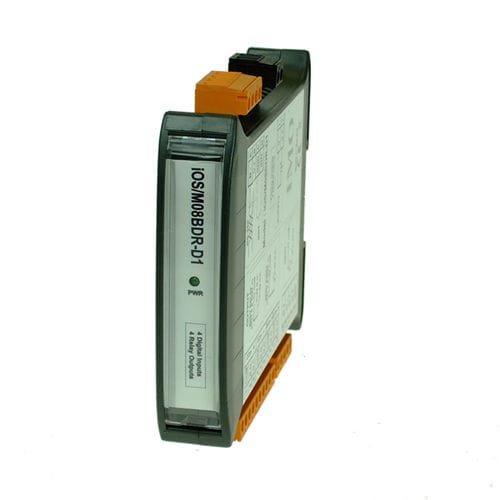

Remote I/O module IOS/M08BDR-D1
digitalanalogModbus RTU

Remote I/O module - IOS/M08BDR-D1 - IMO Precision Controls Limited - digital / analog / Modbus RTU
Remote I/O module - IOS/M08BDR-D1 - IMO Precision Controls Limited - digital / analog / Modbus RTU
Add to favorites
Compare this product


Characteristics

Signal type
digital, analog
Bus
Modbus RTU, RS-485
Number of inputs/outputs
4 digital inputs, with relay output, 8-channel
Type
remote
Applications
automation, for RTD
Mounting
DIN rail
Size
mini
Other characteristics
compact

Description

IMO's remote Input and Output modules, commonly referred to as Remote-I/O, is a selection of serial, CAN and Ethernet 24VDC powered remote modules. Available as digital and analogue input and output, thermocouple, and resistance temperature detector (RTDs) modules. All modules are compact in size and will work with Modbus as well as other available protocols. The IOS serial Remote I/O is ideal in applications where DIN rail space is limited, as the modules mount vertically. They offer all the common types of interfacing including digital, analogue, thermocouple, and RTD types. GSL is a low-cost CAN or Modbus serial "smart" expansion that automatically sets up to the network and offers a low-profile design. The family of XEL and XCL expansions allow for high-speed Ethernet and CAN connections, with a large selection of, click-on: digital, analogue, and thermo-sensor modules. • Specifically designed for use with IMO i3 and XGB PLC • Analogue and digital I/O modules • Up to 16-bit resolution • Configurable inputs inc. DC Voltage, Current, T/C and RTD SPECIFICATIONS • Inputs per Module (Commons) : 4 (1 Common) • Input Voltage Range : 12/24 VDC • Impedence : 4.7k ohms • Peak Voltage 30 VDC • ON voltage level 10 VDC • OFF voltage level 0-3 VDC • Outputs per Module 4 (2 SPDT, 2 SPST) • Max Switching Power 2A @ 250 VDC ; 2A @ 30 VDC • Minimum Load 5 VDC, 10mA • Maximum Voltage 250VAC, 110 VDC • Required Power (Steady State) 45mA @ 24Vdc, typical • Required Power (Inrush) Negligible • Isolation 2000Vac for 60 seconds (Input/Power & Input/Comms) • Sample Time (PLC Update Rate) Min. 20mS - Determined by Configuration • Terminal Type Screw Type, Removable
