- Electricity - Electronics
- Switch and Relay
- Low-voltage disconnect switch
- IMO Precision Controls Limited

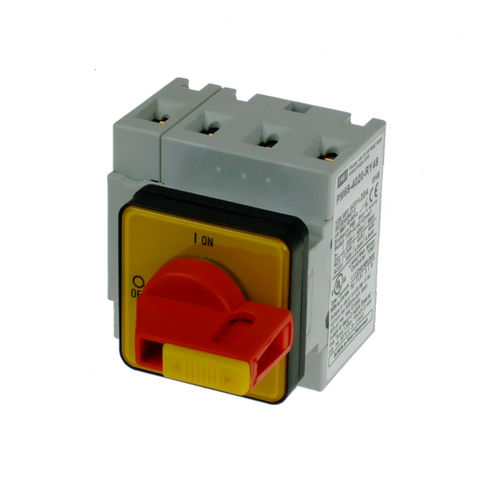

Manual isolator switch PM69-4020-RY48low-voltage4-poleenclosed
Add to favorites
Compare this product
Characteristics
- Type
- manual
- Voltage level
- low-voltage
- Number of poles
- 4-pole
- Construction
- enclosed
- Assembly
- DIN rail
- Certifications
- UL
- Primary current
20 A
- VAC
400 V
Description
Panel Mount Isolator, 4 Pole
20A, Supplied With 48x48mm
Red And Yellow Handle
Pack Size: 25
Specifications
• Handle Type Direct Red/Yellow 48mm Handle
• Lockable Y
• Nema Rating 4X
• Mounting Front Panel Mount
• Temperature Range °C -40 to +90°C
• Number of Poles 4P
• Cable sizes (AWG) 20-8AWG
• Cable size (mm²) 0.5-10mm²
Key Features
• 3, 4, 6 & 8 Pole Versions
• On Load 10A - 125A
• Red/Yellow or Black Handles
• Up to 3 Padlock Positions
• IP66 - NEMA 4X (DM69 IP40)
• Enclosed, DIN Rail, Base or Panel Mount Versions
• Lightweight Extension Shafts (100 - 400mm)
• Side Mounted Auxiliary Contacts
• UL Approved
